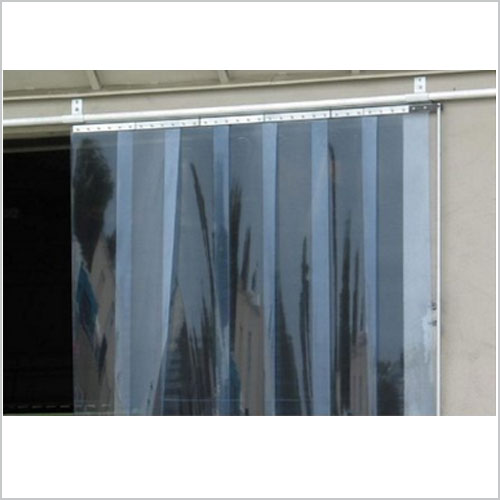

PVC Strip Curtain

We have with us rich industry experience in successfully handling the emerging market demands of PVC Strip Curtains. These serves as best possible option to maintain inside room temperature, dividing work areas, reducing dust as well as in controlling exterior noise from coming in, these low temperature PVC strips are designed to offer clear as well as safe passage by either forklifts or for pedestrian use. Further, these energy efficient strip curtains can also be used in applications like in freezers or coolers.


	Ask For Price

Some of the added advantages of these strip curtains include:

Easy to clean	Add visual safety
Reduces noise	and smoke
Controlling privacy	Controlling temperatures
Fit for warehouse, cooler and freezer door applications

Some of the industry areas these are used in include:

Food processing mills for reducing dust	Manufacturing plants for reducing noise
Cold storage facilities	Pharmaceutical dispensary
Vegetable wash stations	Distribution warehouses
Conveyor systems	Debris containment
Wash down cubicles	Exhaust control

Product Details :

Printed	Yes
Packaging Type	Roll
Condition	New
Finishing Type	Good
Material	PVC
Is It Customised	Customisation
Color	Blue

Standard Dimensions

Screenflex (Welding)	Description
< 13	Visible light quantity transmitted through the material.
80	Index based on a flat indenter's penetration depth. Scale from 0 (Soft) to 100 (Hard).
55	Minimum tensile stress required to tear a pre-slit sample.
18	Maximum tensile stress that a material can be subjected to before break.
300	Elongation of the specimen at the break point under tensile stress.
62	Permanent elongation of the specimen measured after rupture in a tensile test.
0,16	Ability to conduct heat. The Lower it is, the more insulation.
-25	Temperature at which the specimen break under torsion stress. Brittle point (CLASH & BERG).
-15 +50	Temperature range where material keep its mechanical properties (flexibility).
50	Temperature at which the specimen is penetrated to a depth of 1 mm by a 1 kg flat indenter of 1 sq. mm.
1,6	Heat energy required to increase the temperature of one kilogram of the material by one degree Celsius.
>35	Average sound level (freq. 0,1 to 3,2 kHz) decreased by a 1,76 sq.m. and 5 mm thick PVC curtain.
EN 1598*	Standard classification of material self-extinguishing and resistance to combustion.
Filter*	Ability to filter welding rays allowing the use of this material as a welding protection screen.
High	Ability to resist to UV (Sun, welding arc).
Yes	Earthed sample is rubbed with cotton, acrylic and nylon rubbers. At electrode approach, spark appears or doesn't.
4.10¹³	Material surface electric resistivity measured with a 500 V direct voltage.
-o,2	Material mass variation after exposure to humid conditions. (<0 if released / >0 if absorbed) Special ability
No	Special ability to keep insects away.(Food processing plants, tropical regions)
1,22 to 1,33	Mass per unit volume.

T R A N S P A R E N T	Width (mm)	100			150	190	200				300				380			400				570
	Thickness (mm)	1,2	2	3	3	2	2	3	4	5	2	3	4	5	2,5	3	4	2	3	4	5	1
	PRODUCT	REF
	STANDARD CLEAR BLUE	10 0				*	R*	*			*	R*							*	*
	STANDARD NEUTRAL 101	101					*					*								*
	POLAR GREEN	105				*	*	*				*
	POLAR NEUTRAL	107					*					*
	POLAR BLUE	111
	SUPER POLAR GREEN	106					*
	SUPER POLAR NEUTRAL	108
	ANTI-INSECT YELLOW	127
	ANTI-STATIC	180
	HIGH FIRE RETARDANT	170
	HIGH UV RESISTANT	183
	SIGNAL RED	476
	MAT RED	141
O P A Q U E	GREY (RAL 7001)	150
	BLACK (RAL 9005)	153
	BLUE (RAL 5017)	154
	WHITE (RAL 9003)	156
	ORANGE (RAL 2004)	162

* On stock
R Available in ribbed

15 days max.

TECHNICAL SPECIFICATIONS

PROPERTY	Standard	Unit	Standard	Polar	Super Polar	Anti-Insect	Anti-Insect	High fire retardant	High UV resistant	Colored Opaque or Transp.
Light transmittance	ASTM D1003	% Sh A	85	85	85	80	85	85	80	0 to 80
Shore A hardness	EN ISO 868	N/mm	80	65	62	80	80	80	80	65 to 80
Tearing resistance	DIN 53515	N/mm2	50	28	25	50	50	65	50	28 to 65
Tensile strength at break	ASTM D638	%	16	12	10	16	16	20	16	12 to 20
Elongation at break			340	390	420	340	340	280	340	280 to 390
Residual elong. (after break)	EN ISO 527-2	%	68	76	80	68	68	60	68	60 to 76
Thermal conductivity	ASTM C 177	W/m.K	0,16	0,16	0,16	0,16	0,16	0,16	0,16	0,16
Cold bend brittle temp.	ISO 8570	°C	-35	-40	-65	-35	-35	-20	-35	-20 to -40
Min. usage temp.	EN 1876	°C	-15	-25	-60	-15	-15	0	-15	-15
Max. usage temp.	EN 1876	°C	+50	+30	+15	+50	+50	+50	+50	+50
Vicat softening temp.	EN ISO 306	°C	50	48	46	50	50	50	50	48 to 55
Specific heat capacity	ISO 11357	kJ/kg.K	1,6	1,6	1,6	1,6	1,6	1,6	1,6	1,6
Sound reduction	DIN 52210	dB	>35	>35	>35	>35	>35	>35	>35	>35
Fire retardance	NF P 92-507 AS/NZS 3837 DIN 4102	Grade	Grp4 B2	Grp4 B2	-	-	Grp4 B2	M 2 Grp 3	Grp4 B2	Grp4 B2
UV/IR filter UV	EN 1598	Filter	-	-	-	-	-	-	-	-
resistance Charge	ISO4892	-	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
buildup Surface	IEC 61087	Sparks	Yes	Yes	Yes	Yes	No	Yes	Yes	Yes
resistivity Water	IEC 60093		4.10¹³	4.10¹³	4.10¹³	4.10¹³	4.10¹³	4.10¹³	4.10¹³	4.10¹³
absorption Anti-	EN ISO 62	%	-0,2	-0,2	-0,2	-0,2	0,9 to 1,6	-0,2	-0,2	-0,2
insect Density	-	-	No	No	No	Yes	No	No	No	No
	ASTM D792	g/cm³	1,22	1,18	1,18	1,22	1,22	1,33	1,22	1,2 to 1,5
