PVC Strip Curtains
Insulating Doors
Ezeeflex industrial PVC strip
curtains, PVC strip doors, insulating doors are made of clear transparent
PVC strips curtains for uninterrupted passage in factories, shop floors etc.
|
They Are Ideal
For:
- Automobile Industry Textile Mills
- Cold Storages, Ice-Cream Units
- Food / Meat Processing Units
- Hotels
- Pharmaceuticals
- Engineering Industry
Features and Advantages:
- Unlimited access by vehicles and Pedestrians
- Energy conservation
- Increased Efficiency on the shop floor
- Rounded edges to avoid injury to Pedestrians
- Effective reduction in heat, cold and humidity-loss,
noise and dust transmission
- Improved working environment
- Prevents birds, flies, dust, fumes etc. from entering the working
area
- Maintenance free requiring an occasional wash with plain water
and / or colins
Product Composition:
- Ezeeflex PVC strip curtains and PVC strip doors comprise of a
unique U.V. resistant grade of clear soft P.V.C. in strip form and
powder coated CRCA / stainless steel hardware. Ezeeflex is made of
high quality, low toxic, cadmium free PVC. The recommended operating
temperature is 5 degee C to + 60 degree C.
- Resistant to a wide range of chemicals.
- Speciality grades suitable for cold store applications are
available and can withstand upto 35 degree C.
- The concept is simple but highly effective. Strips are hung with
a 50% overlap in small interior apertures or factory partitioning.
100% apertures are used for high pressure areas.
- Sliding door systems for heavy movement areas.
- Brilliant transparency Does not interfere with natural light.
- Ezeeflex material has an oxygen index of 23-34%. This value
represents the percentage of oxygen required to maintain combustion
The fact "normal" atmosphere will contain appoximaterly
21% oxygen means that Ezeeflex are self-Extinguishing.

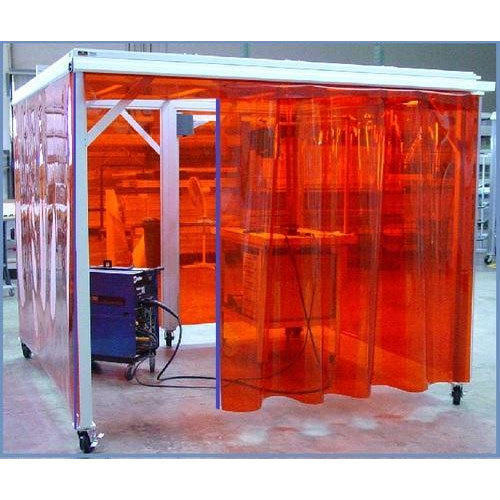

- A special welding curtain is also available. These grades are
generally coloured green with reduction in harmful UV light of 99%.

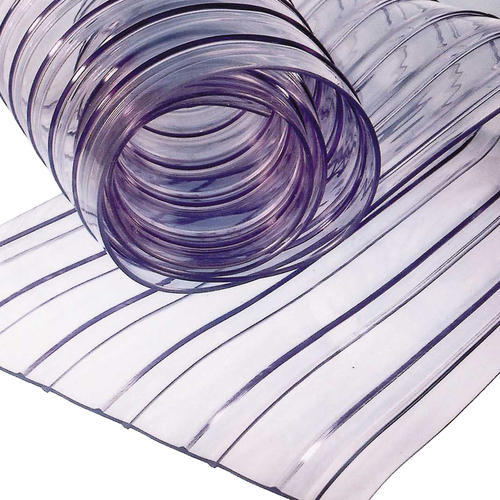

- Buffer strips with a number of ridges absorb the initial impact
with abrasive vehicle coponents. These ridges protect the surface
area and ensure longterm visibility.
|
Best of American and
Europeon technology comes to India |
Product Range
| Normal grade |
|
| 200 X 2 mm |
for doors under 2 mtrs height |
| 200 X 3 mm |
for 2 / 3 mtrs high doors |
| 400 X 3 mm |
for doors over 3 mtrs high |
| 200 X 5 mm |
for high air - pressure areas |
|
|
| Super Cold Store grade |
|
| 200 X 2 mm |
can with stand upto - 35 degree C, for ice -
cream freezers and hotel cold rooms. |
| 200 X 2 mm |
Buffer grade |
|
|
| Buffer strips |
|
| 300 X 3 mm |
for high abrasion |
| 200 X 2 mm |
for high abrasion |
|
|
| Welding grade |
|
| 300 X 2 mm |
to cover welding areas |
|
Prevent The Entry of Birds
in Your Factory |
- Ezeeflex insulating doors comprise of a unique U.V. resistant
grade of clear soft P.V.C. in strip form and powder coated CRCA /
Stainless steel hardware. Ezeeflex is made of high quality, low
toxic, cadmium free PVC. The recommended operating temperature is 5
degee C to + 60 degree C.
- Resistant to a wide range of chemicals.
- Speciality grades suitable for cold store applications are
available and can withstand upto 35 degree C.
- The concept is simple but highly effective. Strips are hung with
a 50% overlap in small interior apertures or factory partitioning.
100% apertures are used for high pressure areas.
- Sliding door systems for heavy movement areas.
- Brilliant transparency Does not interfere with natural light.
- Ezeeflex material has an oxygen index of 23-34% This value
represents the percentage of oxygen required to maintain combustion
The fact "normal" atmosphere will contain appoximaterly
21% oxygen means that Ezeeflex are self-Extinguishing.
- A special welding curtain is also available. These grades are
generally coloured green with reduction in harmful UV light of 99%.
- Buffer strips with a number of ridges absorb the initial impact
with abrasive vehicle coponents. These ridges protect the surface
area and ensure longterm visibility.
|
|
PVC Strip
Curtains |
|
CLEAR "BUFFER"
STRIP |
WELDING STRIP |
MARKER PVC STRIP |
|
|
|
|
*Notes
- Standard quality - suitable for temperatures down to around 0°.
The material has softness of BS. 49 and Shore 73 hardness. Coldflex
temperature @ - 20°C, cold bend temperature @ -40°C.
- We also have a special Super Polar Grade. The material has
softness BS. 81 and Shore 57 hardness. Coldflex temperature @ -58°C,
cold bend temperature @ -70°C.
|
Special Note
Please note that the 'Coldflex' temperature means the temperature at which
the material becomes hard and will not break and the 'cold bend' temperature
is the temperature at which the material will break if flexed. These
temperature ratings are calculated against British Standards test methods
and are conducted under laboratory controlled conditions.
Environmental conditions, amount of traffic and the degree of abrasion will
affect the longevity of "PVC Strip" in use, for example, rough
pallets and sharp objects will form cuts on the surface and reduce effective
life. Ice build up, wind chill effect and relatively high impact will also
reduce effective life.
Fire Performance of PVC Strip Material
PVC Strip material has an oxygen index value of 23-24%. This value
represents the percentage of oxygen in a controlled oxygen/nitrogen
atmosphere that is required to maintain combustion.
The fact that a "normal" atmosphere will contain approximately
21% oxygen means that PVC Strip can be considered effectively as 'SELF
EXTINGUISHING'.
Note:
As with many materials, PVC on burning will give off dense smoke and toxic
fumes such as hydrochloric acid and carbon monoxide. One must also consider
the "Chimney Effect" of vertical burning and of course the close
proximity of more combustible materials such as wood that have a lower
oxygen index and which would promote fire in the area of PVC PVC Strip. PVC
must be considered a very safe material and is currently used in many forms
in building, for example "Window Frames" and should be judged in
relation to other materials when assessment of fire resistance is
considered.
Handling and Storage :
There are no transport or storage hazards, but due care should be taken
while the ROLLS OF "PVC Strip" ARE IN COILED FORM NOT to store in
wet or on damp floors or areas of high humidity. Keep away from heat or
direct sunlight. These precautions do not apply once the strip is hanging in
situ. See storage description (as diagram).
